Example vis 2a

from math import ceil
import pystare as ps

import matplotlib as mpl
import matplotlib.pyplot as plt
import matplotlib.tri as tri
import cartopy.crs as ccrs

import numpy as np

def shiftarg_lon(lon):
    "If lon is outside +/-180, then correct back."
    if(lon>180):
        return ((lon + 180.0) % 360.0)-180.0
    else:
        return lon

def triangulate1(lats,lons):
    "Prepare data for tri.Triangulate."
    print('triangulating1...')
    intmat=[]
    npts=int(len(lats)/3)
    k=0
    for i in range(npts):
        intmat.append([k,k+1,k+2])
        k=k+3
    for i in range(len(lons)):
        lons[i] = shiftarg_lon(lons[i])
    print('triangulating1 done.')
    return lons,lats,intmat

def plot1(lon,lat,lons,lats,triang,c0='r',c1='b',transf=None,lw=1):
    # if(lon is not None):
    if True:
        x=np.zeros([lon.size+1],dtype=np.double);x[:-1]=lon[:];x[-1]=lon[0]
        y=np.zeros([lat.size+1],dtype=np.double); y[:-1]=lat[:]; y[-1]=lat[0]
        ax.plot(x,y,True,transform=transf,c=c0)
    plt.triplot(triang,c1+'-',transform=transf,lw=lw,markersize=3)
    # plt.scatter(lons,lats,s=10,c=c1,transform=ccrs.PlateCarree())
    return

def make_hull(lat0,lon0,resolution0):
    hull0 = ps.to_hull_range_from_latlon(lat0,lon0,resolution0)
    print('hull0 len: ',len(hull0),type(hull0))
    lath0,lonh0,lathc0,lonhc0 = ps.to_vertices_latlon(hull0)
    lons0,lats0,intmat0 = ps.triangulate(lath0,lonh0)
    print('lons0  len: ',len(lons0))
    print('intmat len: ',len(intmat0),type(intmat0))
    triang0 = tri.Triangulation(lons0,lats0,intmat0)
    for i in range(len(intmat0)):
        print(i,intmat0[i],lons0[intmat0[i]],lats0[intmat0[i]])
    print('triang ',triang0.triangles.shape)
    # exit()
    return lats0,lons0,triang0,hull0

# resolution = 5
# resolution = 4
resolution = 3

resolution0 = resolution;

# lat0 = np.array([ 10, 5, 60,70], dtype=np.double)
# lon0 = np.array([-30,-20,60,10], dtype=np.double)

lat0 = np.array([0, 0,10,10], dtype=np.double)
lon0 = np.array([0,20,20,0], dtype=np.double)

lats0,lons0,triang0,hull0 = make_hull(lat0,lon0,resolution0)
print('hull0: ',len(hull0))

# Set up the projection and transformation
proj = ccrs.PlateCarree()
# proj = ccrs.Robinson() # Drives spurious IllegalArgumentException: Argument must be Polygonal or LinearRing
# proj   = ccrs.Mollweide() # Drives spurious IllegalArgumentException: Argument must be Polygonal or LinearRing
# transf = ccrs.Geodetic()
transf = ccrs.PlateCarree()

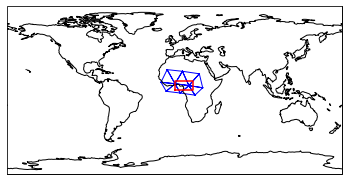

plt.figure()
plt.subplot(projection=proj,transform=transf)
ax = plt.axes(projection=proj,transform=transf)
ax.set_global()
ax.coastlines()
print('graphics-0')
plot1(lon0,lat0,lons0,lats0,triang0,c0='r',c1='b',transf=transf)
plt.show()

hull0 len:  10 <class 'numpy.ndarray'>
lons0  len:  30
intmat len:  10 <class 'list'>
0 [0, 1, 2] [15.35858327 21.90167434 30.20648377] [ 4.85020585 -5.46142928  2.5084551 ]
1 [3, 4, 5] [-14.63880654  -8.97828322   0.415556  ] [ 8.42105871 -1.3114612   6.86746932]
2 [6, 7, 8] [15.35858327  0.415556    6.11345602] [ 4.85020585  6.86746932 -3.1316658 ]
3 [9, 10, 11] [ 6.11345602  0.415556   -8.97828322] [-3.1316658   6.86746932 -1.3114612 ]
4 [12, 13, 14] [15.35858327  6.11345602 21.90167434] [ 4.85020585 -3.1316658  -5.46142928]
5 [15, 16, 17] [-14.63880654   0.415556    -8.02332385] [ 8.42105871  6.86746932 22.0035996 ]
6 [18, 19, 20] [15.35858327  8.4459729   0.415556  ] [ 4.85020585 20.22249681  6.86746932]
7 [21, 22, 23] [ 8.4459729  -8.02332385  0.415556  ] [20.22249681 22.0035996   6.86746932]
8 [24, 25, 26] [15.35858327 30.20648377 26.56505138] [ 4.85020585  2.5084551  17.54840083]
9 [27, 28, 29] [15.35858327 26.56505138  8.4459729 ] [ 4.85020585 17.54840083 20.22249681]
triang  (10, 3)
hull0:  10
graphics-0
